Product:
HAKI Systems
Click here to subscribe to the UKSSH Newsletter.
Haki Systems deliver versatility, speed of installation, safety and reliability. Perfect for birdcages and bridged decks.
scroll down- The only system with a load bearing ledger as a standard component
- Scaffold grids up to 3.65m.
- Fewer components compared to tube and fittings and other systems.
- Up to 30% lighter than tube and fittings and even other systems.
- Large bay length reduces erection times and therefore installation costs.
- No loose/small fittings to service or get lost.
- Minimal moving parts - easy to maintain.
- Connections can be made anywhere, horizontally or vertically.
- Can use system planks or scaffold boards.
- Safe systems of work using the unique advance guard rail method.
- HAKISPAN is simply the best solution for any static or rolling deck requirement.
CASE STUDY: CLADDING REPLACEMENT

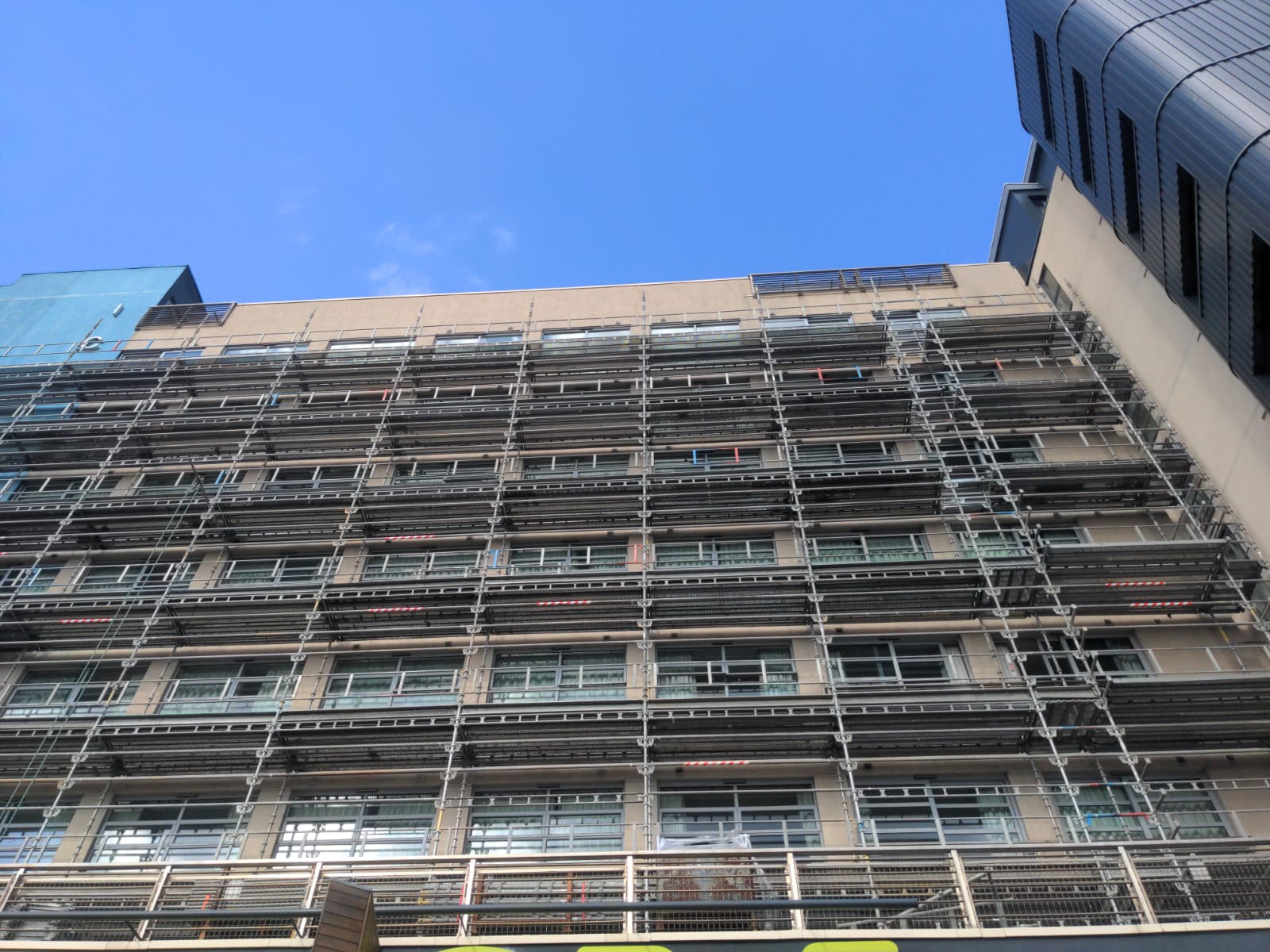

By designing scaffold with a 3-metre lift, UKSSH and XL Scaffolding made the removal and replacement of cladding quick and easy at the Ice House – an iconic building in the centre of Nottingham.
Like so many buildings in the UK, cladding on the exterior of Nottingham’s Ice House was identified as a potential fire risk to inhabitants.
The Ice House is an iconic building in the heart of Nottingham City Centre, which houses both serviced accommodation and rentable apartments. The high footfall in the building placed additional urgency on finding an effective solution that could be delivered quickly and with minimum disruption.
Working with Scaffold Designers RDG Engineering, UKSSH and XL Scaffolding took advantage of the design flexibility of Haki System Scaffold to instal scaffolding with a 3-metre lift to align with the building’s concrete floor levels – a solution that enabled the old dangerous exterior cladding to be quickly removed and easily replaced with fire-proof Permarock panels. The building has been re insulated and boarded and then render applied.
Sam Richardson, Contracts Director at XL Scaffolding commented that using Haki System Scaffold and adopting 3 metre lifts on the project ticked a number of boxes: “Fewer components meant that erection times were reduced by 50% compared to tube and fittings, it also meant that we could schedule fewer deliveries to site – thus keeping disruption to residents to a minimum – and the 3 metre lifts made the removal and installation of panels so much easier for the contractors”.
Logistics of the city centre location meant access restrictions with larger vehicles was tough, XL transported materials from UKSSH’s yard in Tamworth directly to the site location using a 22.5m HIAB mitigating the area needed to store materials.
